homeThing

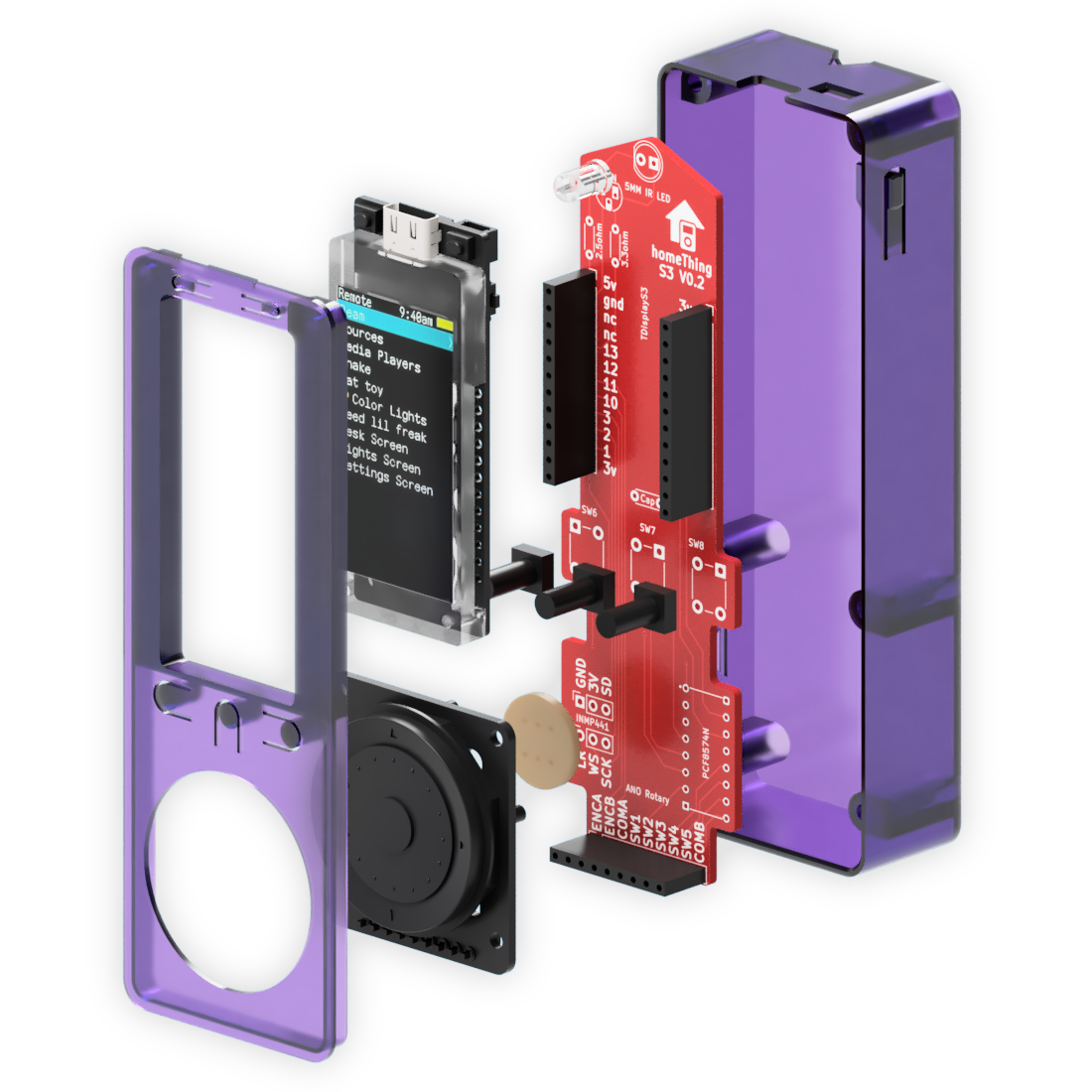

homeThing S3
You’re open to create your own remote, or start with the one we built,
Battery
700mah
Display
170x320 1.9" TFT LCD
Wireless
Wi-Fi 802.11, BLE 5 + BT mesh
Processor
ESP32 S3
Memory
16MB Flash
8MB PSRam
8MB PSRam
Controls
Scrollwheel
Directional Pad
5 Buttons
Directional Pad
5 Buttons
I/O
Microphone
Infrared Emitter
Stemma QT Port
Infrared Emitter
Stemma QT Port
homeThing is a universal remote platform that works with any smart home.
Control Anything

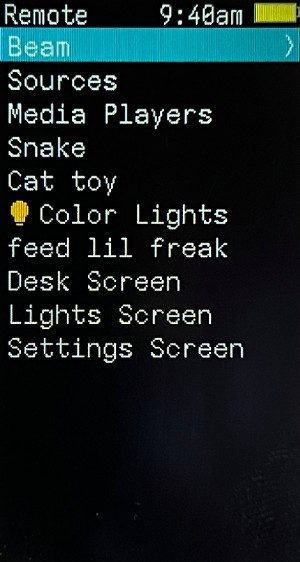

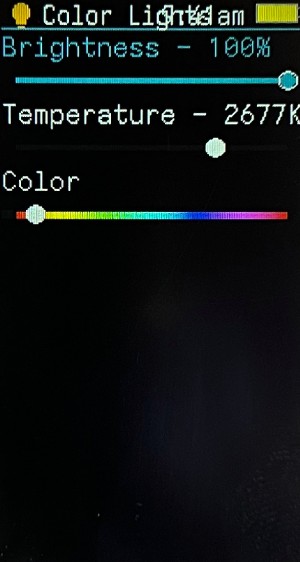

homeThing starts with a menu similar to an iPod that lets users navigate the different functions of the remote. There’s a clock and battery life at the top of the screen that’s always visible. Lights also get a special menu for setting the temperature and color.
homeThing can control smart devices like Philips Hue Lights, Sonos Speakers, Nest Thermostats and more! It can also control devices plugged directly into it like light strips, soil moisture sensors or buttons.
And it’s all open source.
In Any Shape
homeThing can run on any ESP32, but you’ll need a display to see the action! We’ve tested a bunch of different devices that work with homeThing including

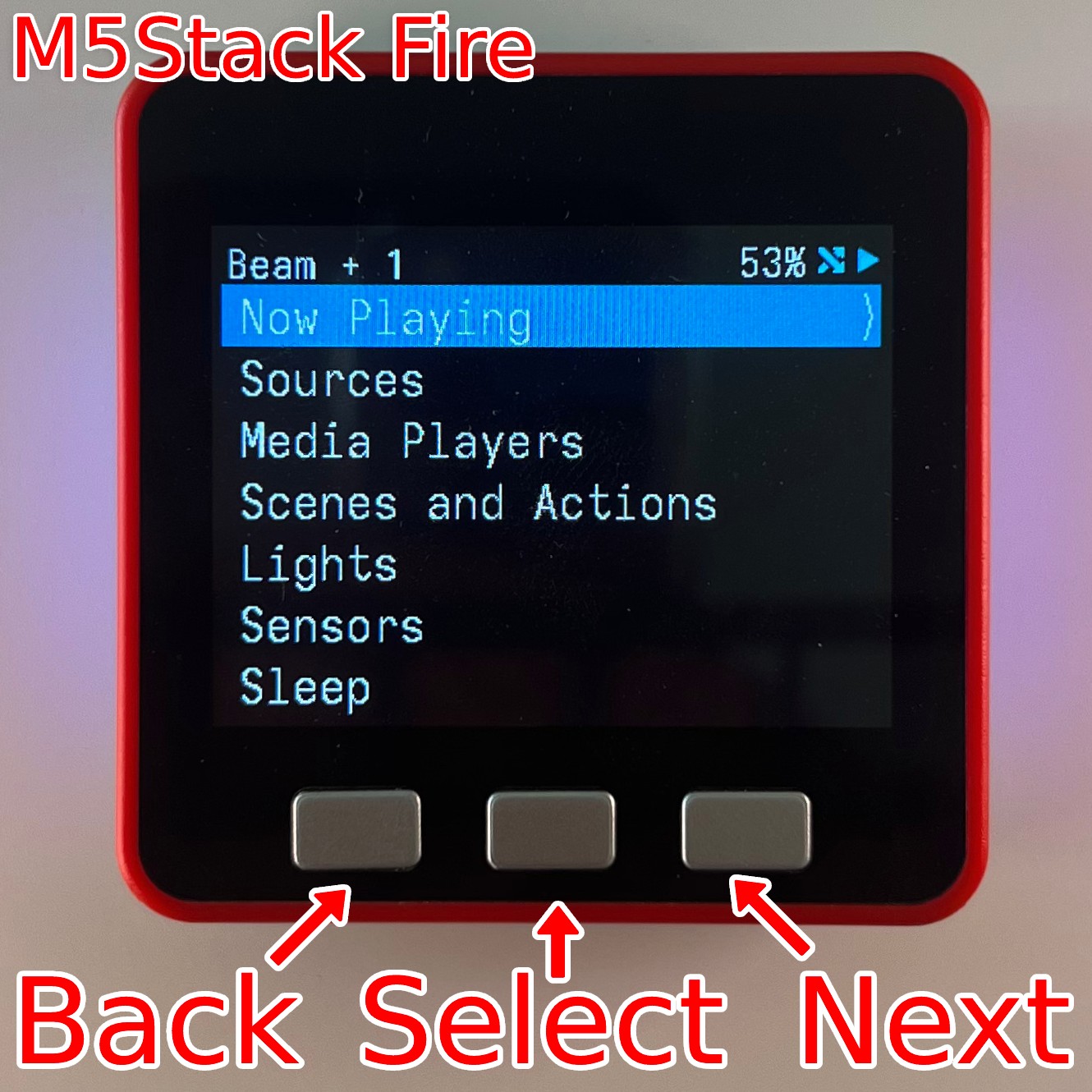

- M5Stack Fire
- M5Stack StickC Plus
- LilyGo TDisplay
- LilyGo TDisplay T4
- LilyGo TDisplay S3
- Lilygo TEmbed
Make It Yours
homeThings menu, fonts and colors can be customized by the user to fit their setup and style.

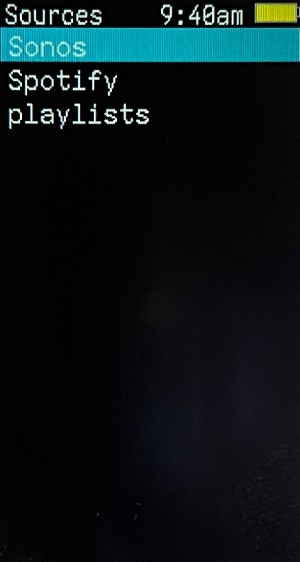

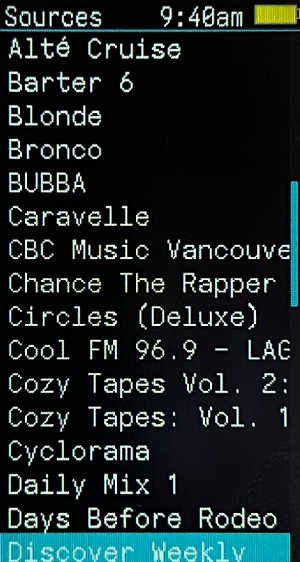

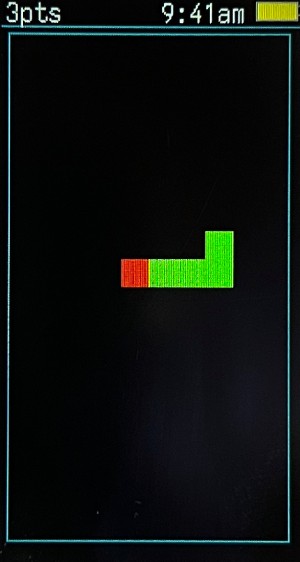

Screenshots
Sponsorship
You can sponsor this project directly on Github 🥰
🔗
PCBWay sponsors 3D Printing and PCB assembly costs on this project during the prototyping phase!
They offer 3D prototyping, PCB design and assembly, as well as CNC metal fabrication. Costs are very cheap and the quality is as good as it gets.
Thank you PCBWay for sponsoring us and other fun projects!
If you want to order a homeThing case, use this link to order from PCBWay
